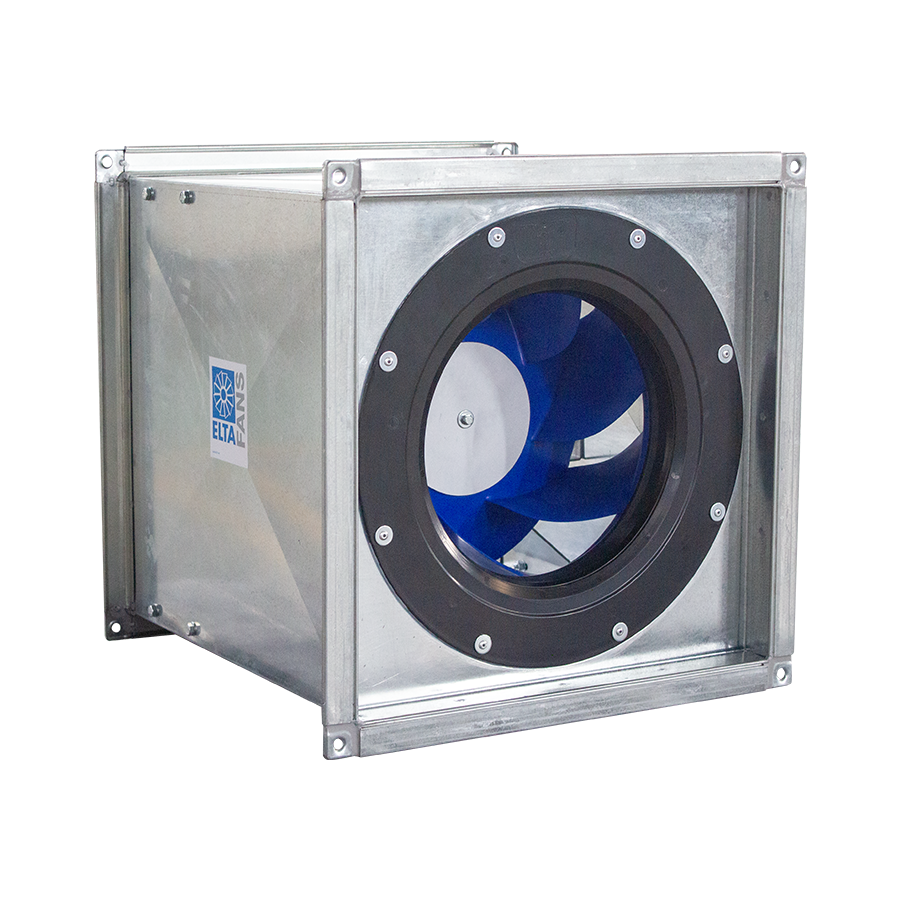

Powerline® Ultra

AMCA Approved In-Line Mixed-flow Fans

  • Robust yet lightweight galvanised steel construction
  • Easy to fit 35mm TDF profile flange connections
  • Speed controlled motors for improved energy efficiency
  • Can be mounted in any position
  • A range of matched ancillaries also available

SKU: EFAP-41-1

Quantity

Got a question about this product?

Email us or call us on +603 7846 0340 (Malaysia) or +91 33-24988126 (India)

Compatible Accessory Ranges

Please refer to Product Overview in Downloads for accessory size guide

FT – In-Line Mounting Feet

FT – In-Line Mounting Feet

POW – Powerline/Multiflow Matching Flanges

POW – Powerline/Multiflow Matching Flanges

Powerline® Series Rectangular Duct Attenuators

Powerline® Series Rectangular Duct Attenuators

Rubber-In-Shear Mounts

Rubber-In-Shear Mounts

VA – Speed Controller

VA – Speed Controller

SD1-S – Speed Controller

SD1-S – Speed Controller

Vacon 100 HVAC Variable Speed Drive

Vacon 100 HVAC Variable Speed Drive

Overview

The Powerline Ultra Series of In-Line Mixed-Flow Fans is designed for a wide range of duct mounted applications. They are most suitable in commercial and industrial applications where medium pressure is required.

Features and Benefits

Design

Lightweight construction designed for a wide range of duct mounted applications. Units can be mounted in any position and feature and easy to fit flange connections.

Testing

All units are tested to ISO5801:2007 (airside performance) and BS848:Part 2, 1985 (sound performance).

AMCA Approved

Elta Fans Malaysia Sdn. Bhd. certifies that the Powerline Ultra series of direct drive inline mixed flow fans shown herein are licensed to bear the AMCA seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and comply with the requirements of the AMCA Certified Ratings Programs. Performance certified is for installation type D: Ducted inlet, Ducted outlet. Speed (RPS) shown is nominal. Performance is based on actual speed of test. Performance ratings do not
include the effects of appurtenances (accessories).

Specification

Casing

Galvanised steel housings with 35mm TDF profile flange connections and mixed flow impeller made from high performance injection moulded composite plastic material.

Motor

Built with standard drive motors the PowerlineⓇ Ultra Series features sealed for life ball bearings and three-phase electricity supply to suit a wide range of frequencies and voltages. Internal thermal protection can also be added to standard frame motors as an optional extra as required.

Control

To improve energy efficiency, standard direct drive motors can be single or multi-speed and can be speed-controlled using a variable speed drive.
