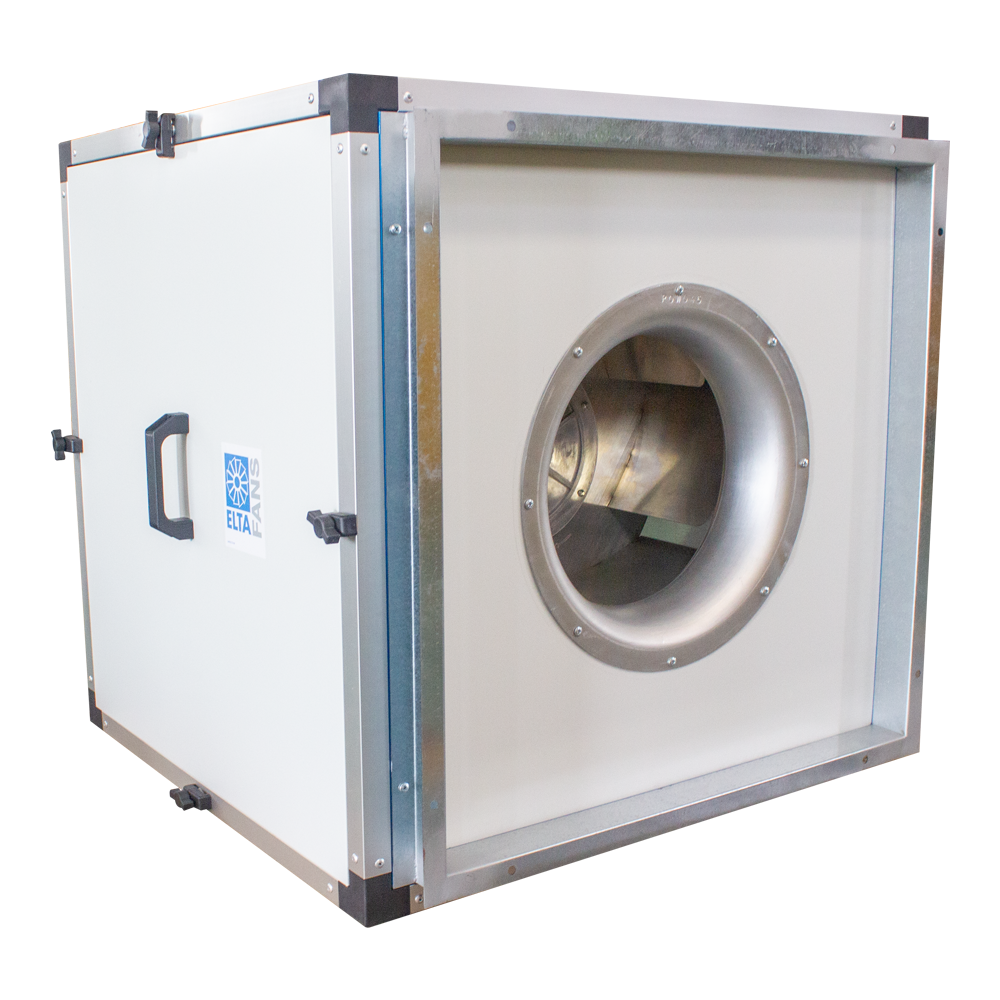

Powerline (PCD double skin)
In-Line Centrifugal Fan
Excl. VAT
- Corrosion-resistant aluminium frame with fibreglass reinforced corners for strength and durability.
- Unit is constructed from double insulated panels filled with 25mm polyurethane (pu) insulation reducing radiated noise.
- Removable side panel, provides easy access for onsite inspection and maintenance.
Got a question about this product?
Compatible Accessories
Overview
The PowerLine Series® of In-Line Centrifugal Fans is designed for a wide range of duct mounted applications. They are most suitable in commercial and industrial applications where medium to high air pressure is required. They are available in various speed options and 8 sizes, extending from 315 to 710mm diameter
- Product Overview
Downloads
Features and Benefits
- Standard direct-drive TEFC motors.
- Large choice of speeds available.
- To improve energy efficiency, motors can be speed-controlled.
- Motors complying with Ex d, Ex e, Ex nA and Ex tD Standards can be fitted.
- A range of matched ancillaries is also available.
- Airflow tests to ISO5801:2007
- Noise tests to BS848:Part 2, 1985 *Performance tests & data are based on PowerLine Ultra Series
Specification
Construction
The casing shall be constructed from self-supporting corrosion-resistant extruded aluminium section assailed with fibreglass reinforced corners and 25mm thick double skinned panels. Double skin panels are manufactured from pre-painted galvanised steel for outer skin and pre-galvanised steel inner skin, in-filled with polyurethane (PU) injected insulation.
Backward-curved centrifugal impellers. Impellers are made from aluminum.
Motor
- Supplied with standard direct-drive TEFC motors
- Electricity supply – single or three-phase to suit a wide range of voltages and frequencies
- Ball Bearing – sealed for life
- Standard direct-drive TEFC motors can be single or multi-speed and can be speed-controlled using a variable speed drive
Internal Thermal Protection
- Optional extra on standard frame motors
Typical Applications
Commercial and industrial supply or exhaust air applications such as shopping centres, office buildings, exhibition centres, hotels, health centres, schools and universities.
