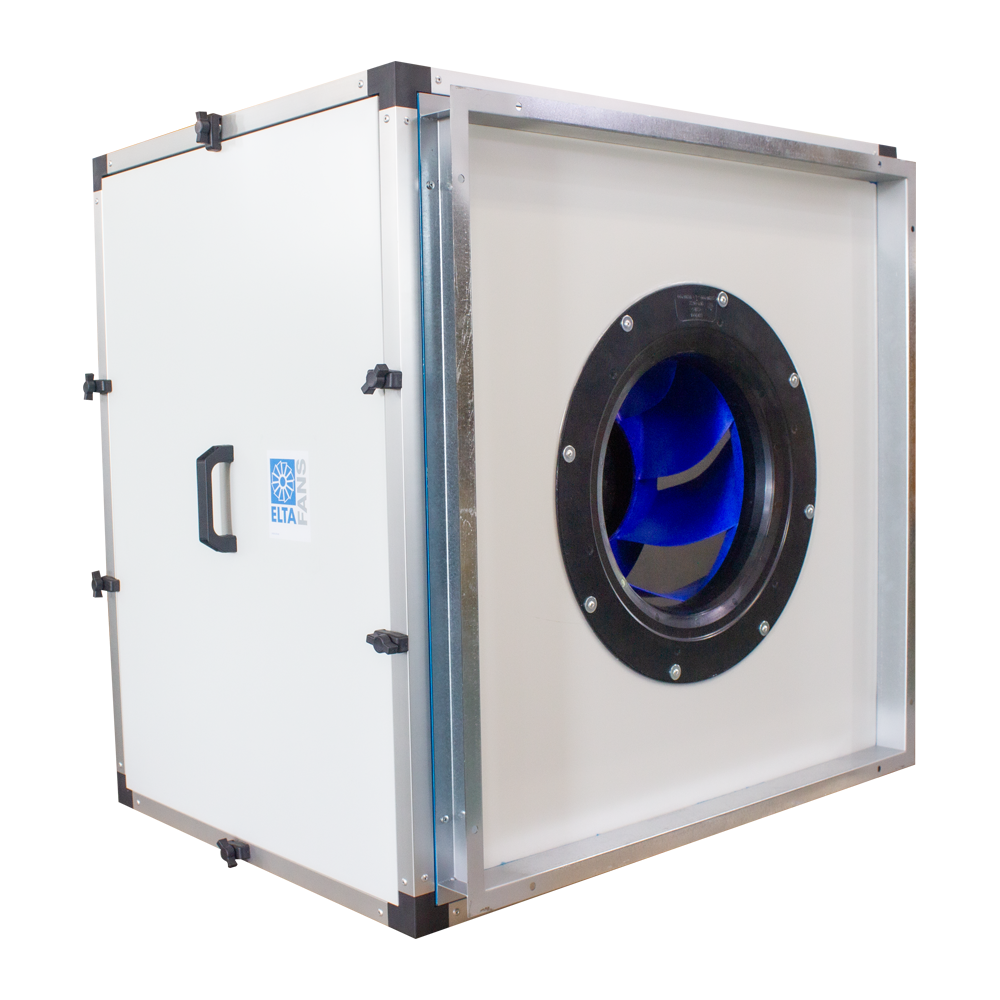

Powerline ULTRA (PUD double skin)
In-Line Mixed-Flow Fan
Excl. VAT
- Corrosion-resistant aluminium frame with fibreglass reinforced corners for strength and durability.
- Unit is constructed from double insulated panels filled with 25mm polyurethane (pu) insulation reducing radiated noise.
- Removable side panel, provides easy access for onsite inspection and maintenance.
Got a question about this product?
Compatible Accessories
Overview
The PowerLine Ultra Double Skin Series of In-Line Mixed-Flow Fans is designed for a wide range of duct mounted applications. They are most suitable in commercial and industrial applications where medium pressure is required. They are available in various speed options and 7 sizes, extending from 315 to 630mm diameter.
- Product Overview
Downloads
Features and Benefits
- Standard direct-drive TEFC motors.
- Large choice of speeds available.
- To improve energy efficiency, motors can be speed-controlled.
- Motors complying with Ex d, Ex e, Ex nA and Ex tD Standards can be fitted.
- A range of matched ancillaries is also available.
- Airflow tests to ISO5801:2007
- Noise tests to BS848:Part 2, 1985 *Performance tests & data are based on PowerLine Ultra Series
Specification
Construction
The casing shall be constructed from self-supporting corrosionresistant extruded aluminium section assailed with fibreglass reinforced corners and 25mm thick double skinned panels. Double skin panels are manufactured from pre-painted galvanised steel for outer skin and pre-galvanised steel inner skin, in-filled with polyurethane (PU) injected insulation.
Mixed-flow impellers are made from high performance injection ounled composite material.
Motor
- Supplied with standard direct-drive TEFC motors
- Electricity supply – single or three-phase to suit a wide range of voltages and frequencies
- Ball Bearing – sealed for life
- Standard direct-drive TEFC motors can be single or multi-speed and can be speed-controlled using a variable speed drive
Internal Thermal Protection
- Optional extra on standard frame motors
Typical Applications
Commercial and industrial supply or exhaust air applications such as shopping centres, office buildings, exhibition centres, hotels, health centres, schools and universities.
