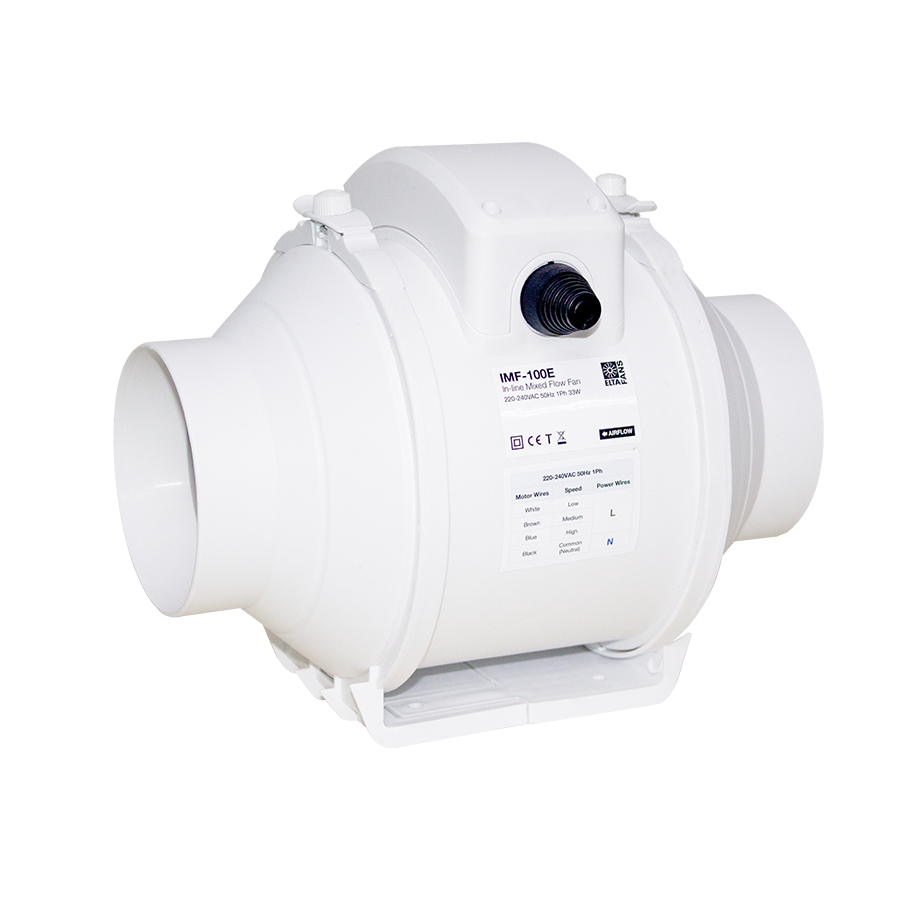

IMF-E
In-line Mixed Flow Fan
Excl. VAT
- Mixed-flow impeller design for a balanced air delivery and pressure performance.
- All plastic casing provides a long lasting, robust and corrosion-resistant shell.
- Mounting bracket is supplied as standard.
- Modular structure design, easy to install and maintain.
- Three-speed motor (high, medium, low), more options for air flow volume optimization.
- Relatively quiet.
- It can be used to build a small negative pressure fresh air system.
- The motor is made of copper enameled wire, which has a long service life.
- Equipped with overheat protection one-shot thermal fuse.
SKU: IMF-E
Got a question about this product?
Compatible Accessories
Overview
The IMF E-Series is our new range of in-line mixed flow fans with a compact profile. They have been designed specifically for use with rigid or flexible ductwork and can be used for a wide variety of residential and commercial applications. They produce excellent pressure development characteristics and are available in 3 sizes to suit 100, 150 and 200mm duct.
- Product Overview
- Installation and Maintenance
Downloads
Features and Benefits
Design
The compact profile makes these units easy to install in tight spaces. They offer excellent pressure development characteristics and have been designed specifically for use with rigid or flexible ductwork.
Protection
All 100, 150 and 200 models are fitted with a one shot thermal fuse.
Testing
All 100, 150 and 200 models have been tested to ISO 5801:2007 (airside performance) and ISO 3744:2010 (sound performance).
Specification
Construction
The IMF Series housing and impeller are made from high quality plastic which is shock proof and long lasting. Mounting bracket is supplied as standard.
Impeller
Unique mixed flow impeller with fixed blade angles designed to overcome the resistances of long ducting systems and creates top silent operation.
Motor
The fans are built with three-speed induction motors, requiring an electricity supply of 220-240V, single phase 50hz. Maximum ambient operating temperature is 40°C. The motor has Class E insulation, Class II protection and is IPX2 rated.
Quality Control
The fans come with a 2 year warranty. Wired terminal box is mounted on the outside of the unit casing, for ease of connection. Units are double insulated so no earth connection is required.
